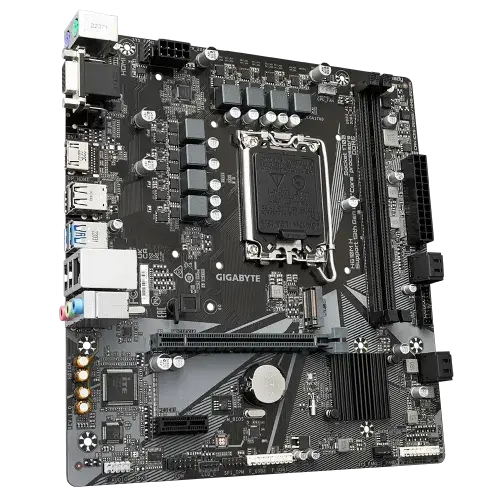

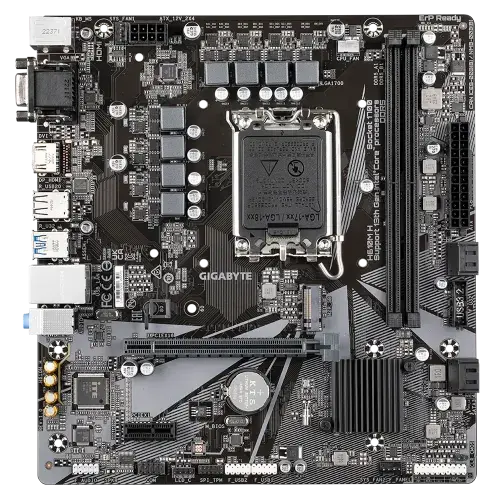

GIGABYTE H610M H DDR5 mATX Motherboard
Quick Details
- Model: H610M H
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR5, Max 64GB 4800(OC)
- Graphics Output: 1x HDMI, 1x D-Sub port
- Features: Realtek GbE LAN chip (1 Gbps/100 Mbps)
11,800৳
0.0৳
| Basic Information | |
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel H610 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory | |
| Type | DDR5 |
| Slots | 2 |
| Supported Memory | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | up to 64 GB (32 GB single DIMM capacity) of system memory |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.) |
| Connector & Ports | |
| HDMI | 1x HDMI |
| D-Sub (s) | 1x D-Sub port |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| Audio | 1 x front panel audio header 2 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others | |
| Special Features | Support for APP Center Support for Q-Flash Support for Xpress Install |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Warranty Information | |
| Manufacturing Warranty | 3 years |
Description

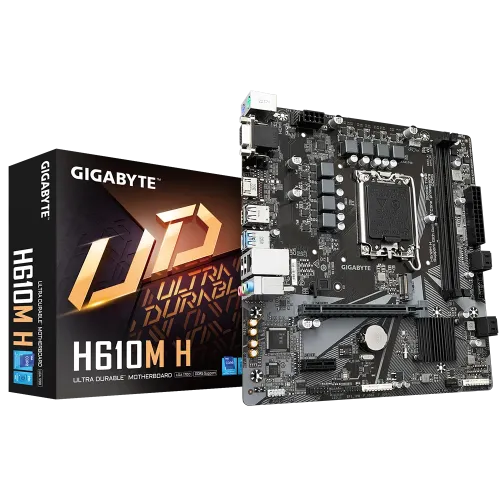

GIGABYTE H610M H DDR5 mATX Motherboard
The GIGABYTE H610M H DDR5 mATX Motherboard is a high-performance motherboard that supports 14th, 13th, and 12th generation Intel processors via the LGA1700 socket. Because it is compatible with Intel Core 14th, 13th, and 12th generation CPUs, it provides a powerful and responsive computer experience. The motherboard supports DDR5 memory with dual-channel non-ECC unbuffered DDR5 slots, with a maximum capacity of 64GB that can be overclocked to 4800MHz. It has 1x HDMI and 1x D-Sub connection for graphics output, accommodating multiple display configurations. A 6+1+1 Hybrid Digital VRM Design for reliable power delivery, PCIe 4.0 Design for better data transfer rates, and Gen3 x4 M.2 for high-speed data transmission with support for NVMe PCIe 3.0 x4 M.2 SSDs are among the advanced features. An Anti-Sulfur Resistor is included to increase longevity, while Smart Fan 6 includes numerous temperature sensors and hybrid fan headers with FAN STOP for effective cooling. For an immersive audio experience, the motherboard also has GbE LAN with Bandwidth Management, high-quality audio capacitors, and Audio Noise Guard. The GIGABYTE APP Center provides a user-friendly interface for quick system customization and control. The GIGABYTE H610M H DDR5 mATX Motherboard provides a dependable and high-performance platform perfect for gamers, content makers, and enthusiasts, with added features such as Anti-Sulfur Resistors Design for better endurance.
